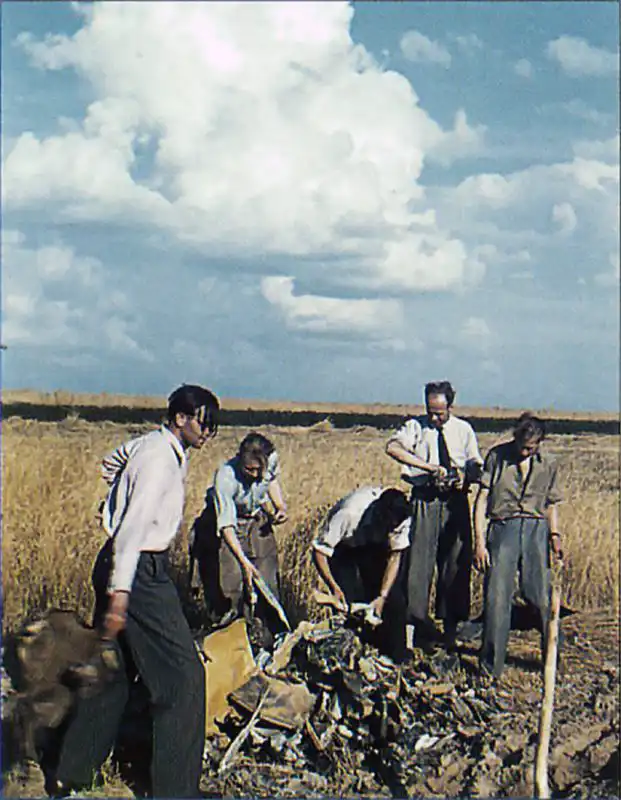

A rare original Agfacolor photograph showing German engineers examining wreckage after a test crash of a Blohm & Voss Bv 143 anti-ship missile at Peenemünde, August 1941.
Original Color Photo: Examining a Crashed Blohm & Voss Bv 143 Anti-Ship Missile in Peenemünde:
This remarkable and exceptionally rare original period color photograph (likely shot on Agfacolor film) captures German engineers and weapons technicians inspecting wreckage at the crash site of an experimental Blohm & Voss Bv 143 (BV-143) guided anti-ship missile. Dated August 27, 1941, the scene takes place at the secretive Luftwaffe proving grounds near Peenemünde on the Baltic coast.
Original color photography from the early years of World War II documenting experimental German rocket and guided weapon trials is extraordinarily scarce, making this image a valuable historical document of early aerospace engineering.
The Concept Behind the Blohm & Voss Bv 143:
Designed under the leadership of Dr. Richard Vogt at Blohm & Voss, the Bv 143 was an early precursor to modern sea-skimming anti-ship cruise missiles. Developed alongside the more famous Henschel Hs 293 glide bomb, the Bv 143 was intended to provide Luftwaffe maritime strike aircraft (such as the Heinkel He 111 or Focke-Wulf Fw 200 Condor) with a stand-off weapon capable of destroying Allied merchant ships and naval vessels from outside effective anti-aircraft range.
The missile featured an innovative two-stage operation concept designed for ultra-low-altitude attacks:
- Glide Phase: After being dropped from a launch bomber at medium altitude, the missile deployed its wings and glided toward the target area under automatic gyro-stabilized autopilot control.
- Sea-Skimming Phase: As the missile neared the water's surface, a special 2-meter mechanical sensor feeler arm extended downward from the fuselage. Upon touching the ocean surface, the mechanical sensor triggered a solid-fuel rocket booster, driving the missile forward horizontally just meters above the waves directly into the ship's hull.
Flight Testing Failures and Cancellation:
Despite its visionary concept, the mechanical sensing system proved extremely unreliable in practical sea trials. Oscillations, rough sea states, and wave interference frequently triggered the rocket engine prematurely or caused the missile to dive directly into the water.
As depicted in this photograph taken during the summer 1941 testing cycle at Peenemünde, accidents during experimental air-drops were frequent. Civil-clad technicians and military specialists can be seen retrieving shattered flight recorders, instrument wreckage, and structural components from a field near the airfield to determine the cause of the system failure.
Due to persistent guidance and sensor flaws, the Bv 143 project was eventually abandoned by the Reich Air Ministry (RLM) in favor of the radio-guided Henschel Hs 293 and Fritz X anti-ship weapons.
📍 Location: Peenemünde, Pomerania, Germany
📅 Date: August 27, 1941
📷 Photographer: Unknown
